SD9N Bulldozer Successfully Supports Large-Scale Copper Mining Operations in Tibet

Project Background

As one of China's most important copper resource regions, Tibet is home to several large-scale open-pit copper mines located at altitudes exceeding 4,000 meters. Mining operations in these areas face unique challenges, including low oxygen levels, steep terrain, large volumes of overburden, extreme temperature fluctuations, and demanding continuous-duty requirements for heavy equipment.

To improve site preparation efficiency and support daily mining operations, a major copper mining project in Tibet selected the HBXG SD9N Bulldozer as its primary earthmoving and material handling solution.

Application Challenges in High-Altitude Copper Mines

Open-pit copper mining requires powerful and reliable equipment capable of handling:

• ● Overburden stripping and waste rock pushing

• ● Haul road construction and maintenance

• ● Stockpile management

• ● Mining bench preparation

• ● Continuous operation under harsh environmental conditions

• ● Heavy-duty dozing on rocky and uneven terrain

At high altitudes, engine performance, cooling efficiency, machine stability, and drivetrain reliability become critical factors affecting productivity.

Why the Customer Chose the SD9N Bulldozer

◆ Powerful 430 HP Engine for Demanding Mining Applications

The SD9N is equipped with a high-performance Cummins KTA19 diesel engine delivering 430 HP of power. The engine provides strong torque output and excellent load-handling capability, enabling the machine to efficiently push large volumes of rock, soil, and mining materials even under reduced oxygen conditions found in high-altitude regions.

For copper mining operations where production targets must be maintained year-round, the machine offers the power reserve necessary for continuous heavy-duty work.

◆ Elevated Sprocket Design Enhances Reliability

One of the most distinctive features of the SD9N Bulldozer is its elevated sprocket undercarriage design.

In Tibet's rocky mining environment, traditional undercarriage systems are often exposed to severe impact loads and accelerated wear. The elevated drive system effectively isolates final drives from ground shocks, reducing component stress and extending undercarriage life.

This design provides:

• • Increased drivetrain durability

• • Reduced maintenance requirements

• • Better traction on uneven ground

• • Improved machine stability during heavy pushing operations

For mining companies seeking maximum equipment uptime, this translates directly into lower operating costs and higher productivity.

◆ Large Blade Capacity Improves Material Movement Efficiency

The SD9N features a semi-U blade with a capacity of up to 13.5 m³, making it ideal for handling large volumes of overburden and waste material.

During mine road construction and stripping operations, the machine can move substantial amounts of material in a single pass, reducing cycle times and improving overall site efficiency.

Operators reported significant improvements in earthmoving productivity compared with smaller-class bulldozers previously used on the site.

◆ Heavy-Duty Undercarriage for Extreme Terrain

Mining areas in Tibet often feature:

• • Loose rock surfaces

• • Steep gradients

• • Uneven haul roads

• • Soft ground sections

The SD9N's suspended undercarriage system ensures excellent ground contact and traction under these challenging conditions.

Benefits include:

• • Improved climbing capability

• • Better flotation performance

• • Reduced vibration

• • Increased operator comfort

The machine remains stable and productive even during prolonged operation on difficult terrain.

Operational Results

Since entering service at the copper mine, the SD9N Bulldozer has been deployed in multiple operational areas, including:

• • Mine stripping operations

• • Haul road construction

• • Waste dump maintenance

• • Material stockpile management

• • Site leveling and infrastructure development

The customer has reported:

• • High equipment availability

• • Excellent fuel efficiency for its size class

• • Strong pushing performance

• • Reduced maintenance downtime

• • Reliable operation in high-altitude environments

The machine continues to play a critical role in supporting daily mining production and infrastructure expansion activities.

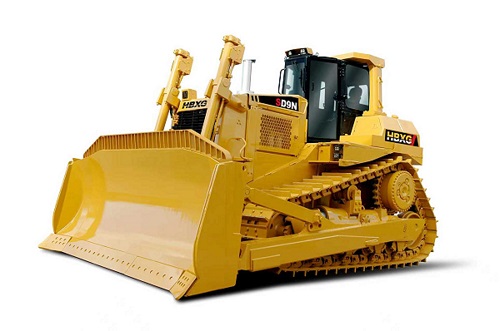

SD9N Bulldozer Key Features

The SD9N Bulldozer is a 430HP high-drive tracked bulldozer primarily designed for heavy-duty applications such as mining, large-scale earthmoving projects, port construction, oil field development, and infrastructure construction.

1. Elevated Sprocket Structure Design 2. Powerful 430HP Engine 3. Hydraulic-Mechanical Transmission System 4. Modular Design for Easy Maintenance 5. High-Capacity Bulldozing Capacity 6. Flexible Suspension Chassis System 7. Comfortable and Safe Cab 8. Wide Range of Applications

Conclusion

For demanding open-pit mining projects in high-altitude regions such as Tibet, equipment reliability and productivity are essential. The SD9N Bulldozer combines a powerful 430 HP engine, elevated sprocket drive system, heavy-duty undercarriage, and large-capacity blade to deliver exceptional performance in some of the world's most challenging mining environments.

Its successful application in a Tibetan copper mine demonstrates the SD9N's capability to meet the rigorous demands of modern mining operations while providing customers with long-term value, reduced operating costs, and dependable productivity.
