Casting

Hebei Xuanhua Construction Machinery Co., Ltd Zhangjiakou Branch, located in Zhangjiakou City, Hebei Province, Xishan industrial agglomeration area shenkong road, is a professional foundry, was completed and go into operation in February 2013, 180 million of fixed assets, covers an area of 65000 square meters, 26,000 square meters of production area, number of employees 210 people, casting production capacity of 20,000 tons/year.

The company used resin sand production. Main production equipment: 3t/5t/10t electric furnace and automatic feeding equipment, the two molding line and 11pcs Mixer, sand processing system for two-stage centrifugal regeneration and pneumatic conveying, two 80t trolley type resistance furnace,  Q7820, Q7550 7 pcs shot blasting and paint line, three core shooting machine. The production area is divided into small and medium-sized parts workshop, large workshop and clean workshop three regions. Text equipment used HuaZhu CAE casting simulation software, Italy GNR direct reading spectrometer, Ultrasound, and magnetic particle testing, Microscope, Mechanical Character Test Machine. Strong technical force, Has a technical staff of 15 people, graduated from major institutions, has a rich cast of professional theoretical knowledge and practical experience, The person responsible for the management process of sand casting technology, smelting and equipment; Operators graduated from technical school major in casting, casting production experience for 20 years, including 8 person for senior technicians, 27 person for technicians, distributed in all processes; has produce a variety of pattern, including epoxy resin pattern.


Share:

Technical Features

Passed the ISO9001 international quality certification, has perfect quality management system in strict accordance with the ISO9001 standard for quality management, Has full-time quality manager, The new product of the process validation program, Various processes with operating instructions and full-time inspectors, The quality of the file, the record is complete, reasonable and effective.

Production HT200, HT250, HT300, QT400-18, QT450-10, QT500-7, QT600-3 and other cast iron grades capabilities and is currently the major material HT200, HT250, QT400-18, QT450-10, gray iron 60%, according to customer demand to develop new varieties of materials; product mix box, wheel class, Valve Bodies, of which 60% of the box-type, the wheel class 20%, 10% of the valve body, a high level of process design capabilities and operational level, to produce construction machinery all kinds of casting; Product weight from a few kilograms to 10 tons of large castings; CT8-10 level of precision casting size, surface roughness Ra25-50.

Castings exported to Japan, Germany, the United States, the main customers Qinghai Huading gearbox, Germany's Siemens (Flender), APC Asia Pacific casting Tianjin International Trade Co., Ltd..

The new foundry capacity of 20,000 tons/year, Now production of 5000 tons/year. Xuangong foundry has machine capacity. Welcome to visit, to discuss cooperation.

ADRESS: Xishan industrial agglomeration area,Zhangjiakou City, Hebei Province

TEL0311-5669285        18632308152

FAX:0313-56692959

E-MAIL:xgcast@sina.com


Performance Parameters

Equipments                                                                          Specification & Qty

Melting

Electric furnace

5t    &   2pcs

3t & 2pcs

10t & 2pcs

Molding

Sand Mixer

20t/h &  5pcs

10t/h & 2pcs

32t/h & 1pcs


Core Shooter

Horizontal & 1pcs

Vertical & 2pcs



Tipper

2pcs



Cleaning

Shot Blasting Machine

20t   &  1pcs

5t   &  3pcs

3t   &  2pcs


Aging furnace

80t  &  2pcs




Painting line

1pcs



Crane

Crown block

28pcs

3t-32t

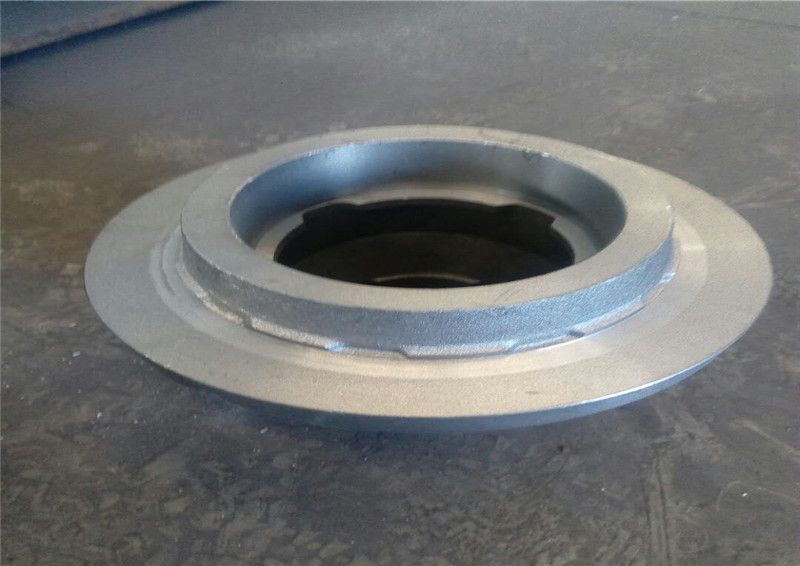

Castints


Castints

Castints

Castints

Castints

Castints

Castints

Castints
