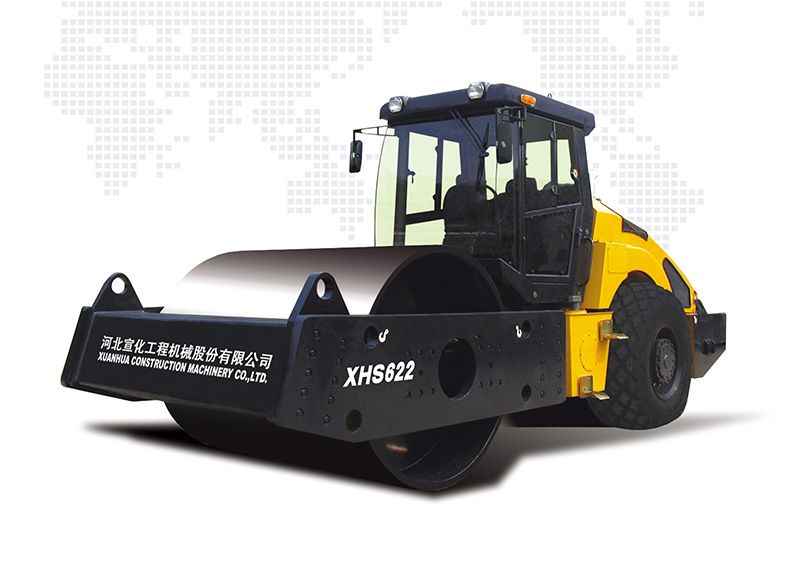

XHS622H/620H/618H Roller XHD626H/622H/620H/618H Roller
1. Motor: Cummins extra-pressure diesel engine, have huge power reserving, which comply with the operating conditions above 4000 meters altitudes.
2. Total hydraulic pressure, rear wheel drive(XHS), full drive(XHD), frequency and radiation conversion, articulated direction change, two stepless speed changes, advanced technology; block the oil supply to break the vehicle, safte and reliable.
3. Steamline outside, circular windshield glass and curvy hood from a unique style.
4. Hydraulic pump and motor are of the American manufacturer Sauer or Germany Rexroth.
5. Equipped with padfoot or removable padfoot as option.
Technical Features
1. Motor: Cummins extra-pressure diesel engine, have huge power reserving, which comply with the operating conditions above 4000 meters altitudes.
2. Total hydraulic pressure, rear wheel drive(XHS), full drive(XHD), frequency and radiation conversion, articulated direction change, two stepless speed changes, advanced technology; block the oil supply to break the vehicle, safte and reliable.
3. Steamline outside, circular windshield glass and curvy hood from a unique style.
4. Hydraulic pump and motor are of the American manufacturer Sauer or Germany Rexroth.
5. Equipped with padfoot or removable padfoot as option.
Performance Parameters
| Model | XHS622H | XHS620H | XHS618H | XHD626H | XHD622H | XHD620H | XHD618H | |
| Operating weight | Kg | 22000 | 20000 | 18000 | 26000 | 22000 | 20000 | 18000 |
| Static line load | N/cm | 560 | 500 | 470 | 695 | 660 | 600 | 540 |
| Vibration frequency | mm | 1.9/0.95 | 1.9/0.95 | 1.9/0.95 | 1.9/0.95 | 1.9/0.95 | 1.9/0.95 | 1.9/0.95 |
| Centrifugal force | Hz | 28/35 | 28/35 | 28/35 | 28/35 | 28/35 | 28/35 | 28/35 |
| Travel speed | Km/h | 11 | 11 | 11 | 11 | 11 | 11 | 11 |
| Grade ability | % | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| Turning radius | mm | 7500 | 7500 | 7500 | 7500 | 7500 | 7500 | 7500 |
| Overall dimension | mm | 6665X2340X3090 | 6665X2300X3090 | 6665X2280X3090 | 7025X2360X3090 | 6665X2340X3090 | 6665X2300X3090 | 6665X2280X3090 |
| Vibration round width | mm | 2100 | 2100 | 2100 | 2100 | 2100 | 2100 | 2100 |
| Wheel base | mm | 3380 | 3380 | 3380 | 3380 | 3380 | 3380 | 3380 |
| Diesel model | 6BTA5.9 | 6BTA5.9 | 6BTA5.9 | 6BTA8.3 | 6BTA5.9 | 6BTA5.9 | 6BTA5.9 | |
| Diesel power | kW | 132 | 132 | 132 | 158 | 132 | 132 | 132 |
