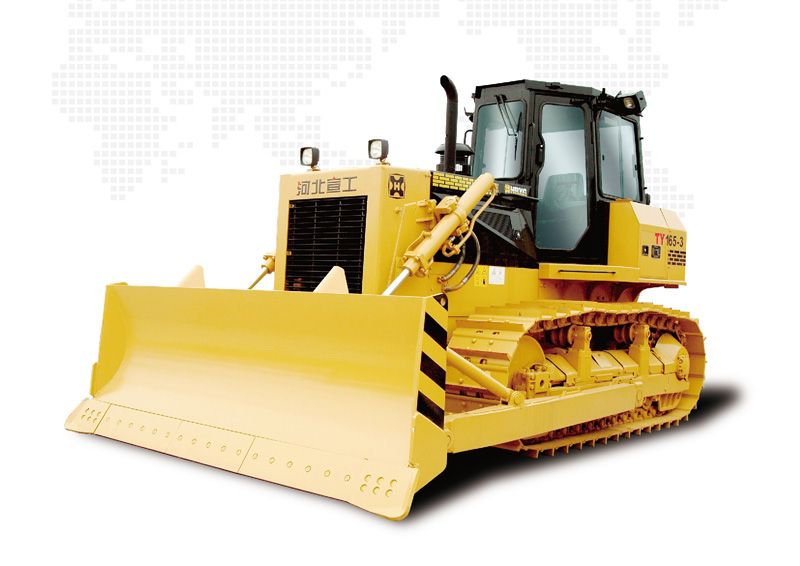

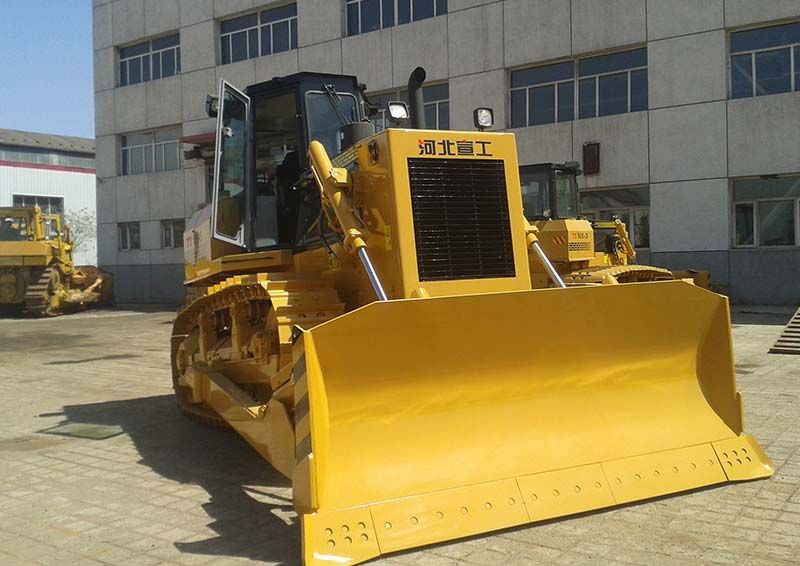

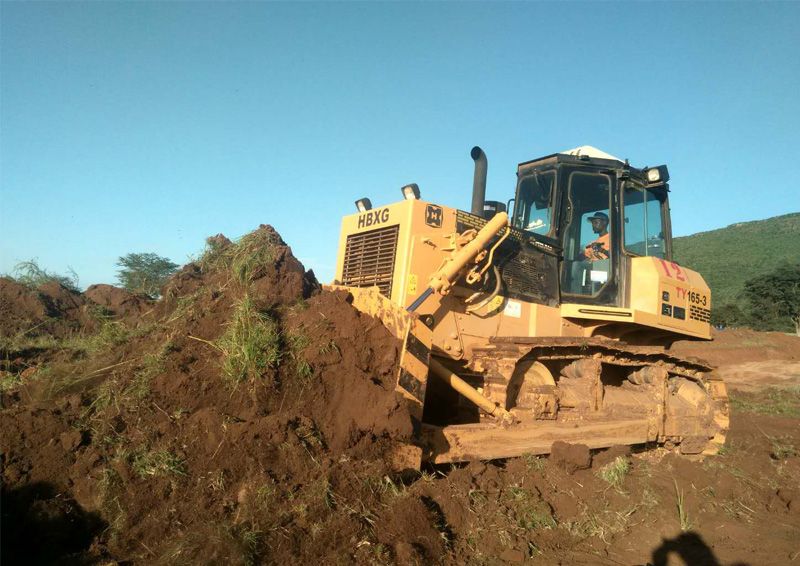

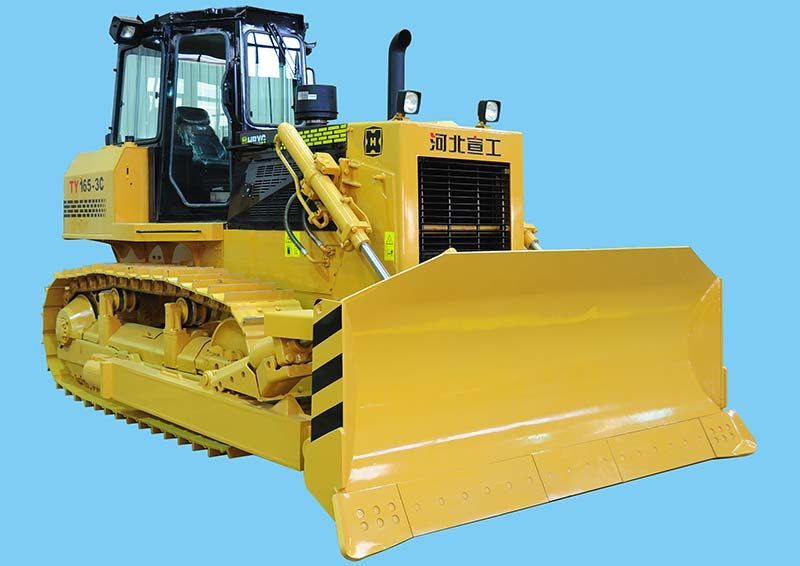

TY165-3 Bulldozer

TY165-3 bulldozer is 165 horsepower track-type dozer with hydraulic direct drive, semi-rigid suspended and hydraulic assisting operating, pilot hydraulic blade control. It is characterized by high efficient, open view, optimized structure, easy operation and service with low cost and reliable entire quality. It can be equipped with three shanks ripper, U-blade (5.2 cubic meter capacity) and other optional components. It is applicable for earth handling in road construction, desert and oil-field working, farmland and port construction, irrigation and electric power engineering, mining and other engineer conditions.


Share:

Technical Features

TY165-3 bulldozer is 165 horsepower track-type dozer with hydraulic direct drive, semi-rigid suspended and hydraulic assisting operating, pilot hydraulic blade control. It is characterized by high efficient, open view, optimized structure, easy operation and service with low cost and reliable entire quality. It can be equipped with three shanks ripper, U-blade (5.2 cubic meter capacity) and other optional components. It is applicable for earth handling in road construction, desert and oil-field working, farmland and port construction, irrigation and electric power engineering, mining and other engineer conditions.


Performance Parameters

Flywheel power121KW/165HP
Operating wight17550kg
Ground pressure68.3Kpa
Track gauge1880mm
Gradient30°/25°
Min. ground clearance353mm
Blade width3442mm
Max. Digging depth420mm
Overall dimensions5447×3442×3160mm
